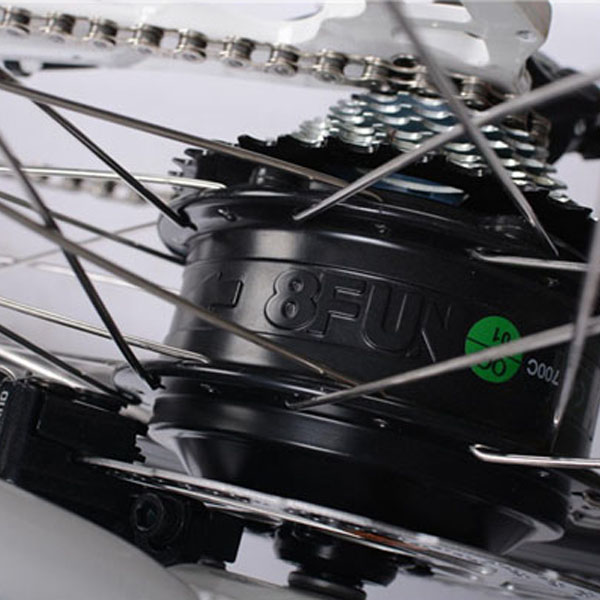

Motor: Bafang brushless,rear driving, 36V 0W

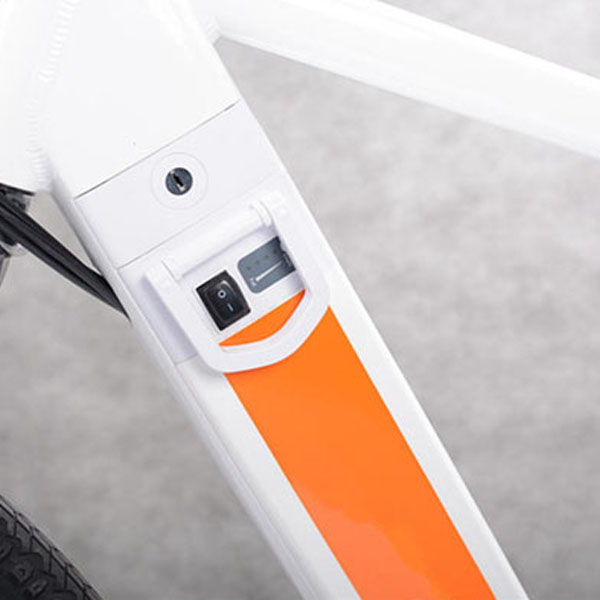

Battery: Samsung Lithium battery,48V,10.4AH, 15.6AH, 20.4AH
Frame: Alloy 6061
Front fork: Suspension fork or Steel with painting
Display: LCD
Light: LED Front & Rear Light
Controller: 36V 15A intelligent brushless,Kunteng Brand
Wheel: 700C×35C, Kenda Brand
Saddle post: Alloy & suspension, Promax Brand

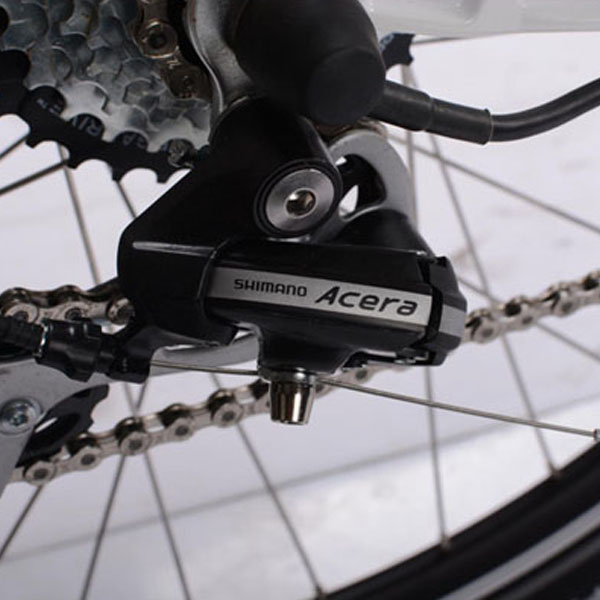

Derailleur: 24-Speed, Shimano Tourney
Mudguard: Steel with Painting
Brake: Front & Rear Disc brake,Tektro Brand
Max Speed 25km/h(EU),30km/h(USA)
Range 50KM by Throttle,90km more by PAS
Max load 100KGS
Net Weight 25.8kg including battery
Gross Weight 30.8kg including package
Carton Size 1650*270*770mm
Loading Qty 88pcs/20ft container,186pcs/40GP

Motor : 250W 350W 500W 750W bafang motor

Battery : Samsung 36V 10.4ah/36V 13ah/36V 17.5ah

Samsung 48V 10.4ah/48V 13ah/48V 17.5ah

LCD c800s col orful display(with usb function)

3A special charger
mudguards/rear rack
suspension fork
hydraulic disc brake

Color selection


  •
  •
