You are here: Home  »  Products  »  Ebike Cargo  »  FAT TIRE 20INCH RSD-520
4/8
Share this post!
  • Specifications
  • Optional Parts
  • Color

Motor:  brushless,rear driving, 48V500W/48V750W, Bafang
Battery:  Samsung Lithium battery,36V/48V,10.4AH, 13AH,15.6AH,21AH
Frame:  Alloy 6061
Front fork:  Suspension fork or Steel with painting
Display:  LCD
Light:  LED Front & Rear Light
Controller:  48V 22A intelligent
Wheel:  20inch*4.0, Kenda Brand
Saddle post:  Alloy & suspension, Promax Brand
Derailleur:  7-Speed, Shimano Tourney
Mudguard:  Steel with Painting
Brake:  Front & Rear Disc brake,Tektro Brand
Max Speed 25km/h(EU),30km/h(USA)
Range 35KM by Throttle,70km more by PAS
Max load 150KGS
Net Weight 30kg including battery
Gross Weight 35kg including package
Carton Size 150*290*700mm

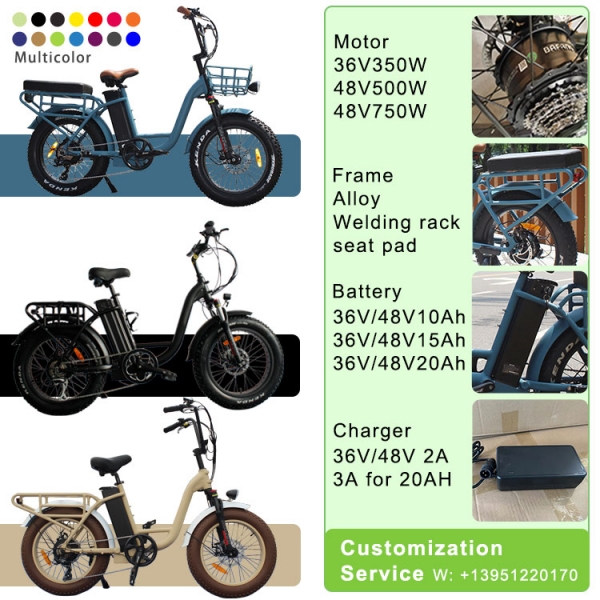

Motor : 250W 350W 500W 750W bafang motor
Battery : Samsung 36V 10.4ah/36V 15.6ah/36V 21ah
Samsung 48V 10.4ah/48V 15.6ah/48V 21ah
LCD c900e col orful display(with usb function)
3A special charger
mudguards/rear rack
suspension fork
hydraulic disc brake

Black and white are available for the sample order.

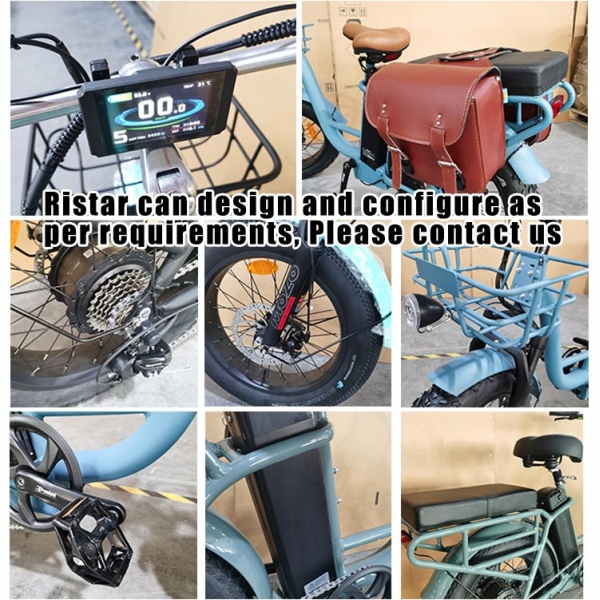

Can be customized based on quantity.

  •
  •
