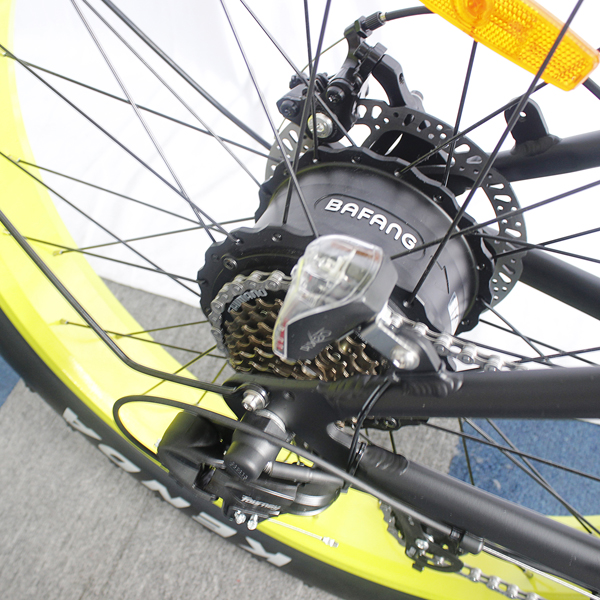

Motor:  Bafang brushless,rear driving, 48V 500W
Battery:  Samsung Lithium battery,48V,10.4AH, 15.6AH, 20.4AH
Frame:  Alloy 6061
Front fork:  Suspension fork or Steel with painting

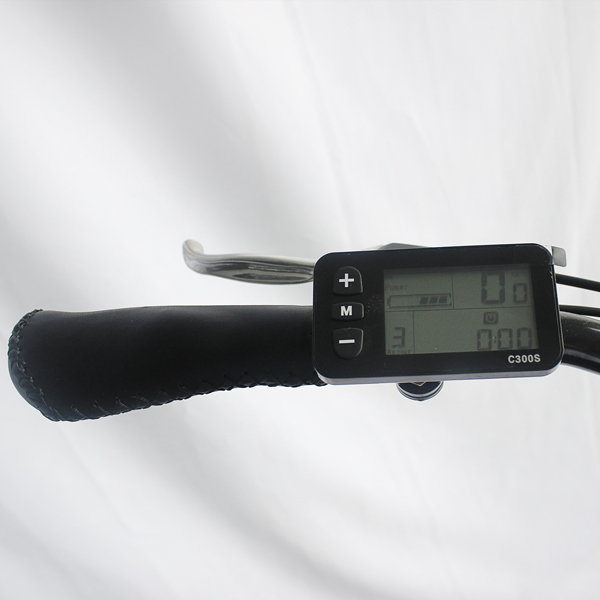

Display:  LCD
Light:  LED Front & Rear Light
Controller:  48V 18A intelligent brushless,Kunteng Brand
Wheel:  fat tire type 26*4.0, Kenda Brand

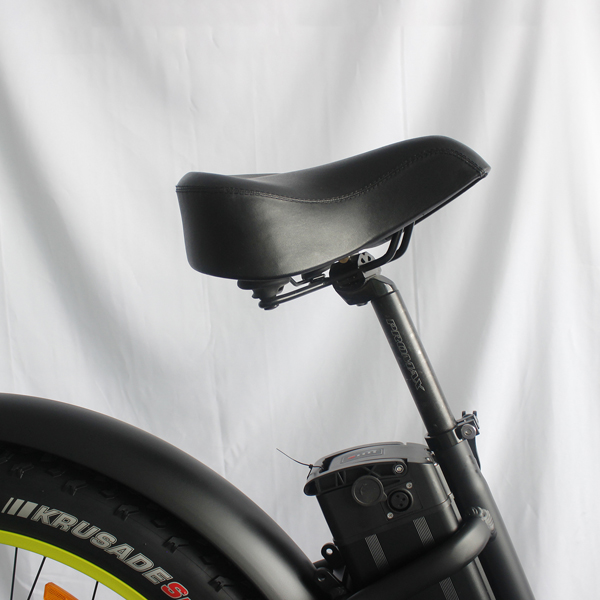

Saddle post:  Alloy & suspension, Promax Brand
Derailleur:  7-Speed, Shimano Tourney
Mudguard:  Steel with Painting
Brake:  Front & Rear Disc brake,Tektro Brand
Max Speed 25km/h(EU),30km/h(USA)
Range 50KM by Throttle,90km more by PAS
Max load 100KGS
Net Weight 26.5kg including battery
Gross Weight 31.5kg including package
Carton Size 1650*270*770mm
Loading Qty7 78pcs/20ft container,170pcs/40GP

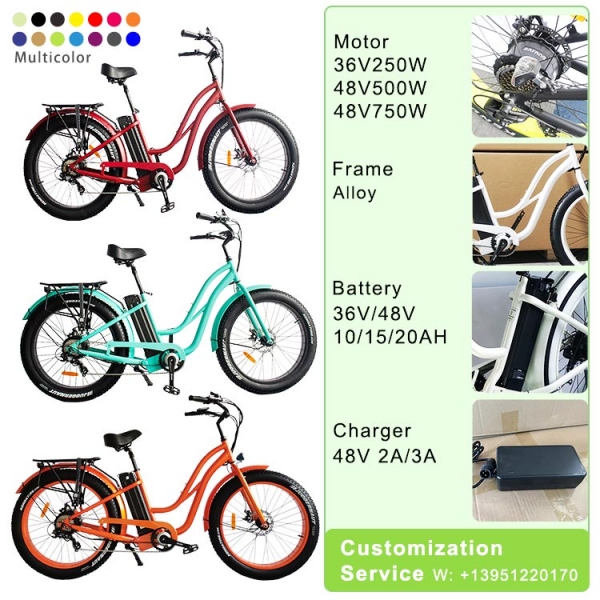

Motor : 250W 350W 500W 750W bafang motor

Battery : Samsung 36V 10.4ah/36V 15.6ah/36V 21ah

Samsung 48V 10.4ah/48V 15.6ah/48V 21ah

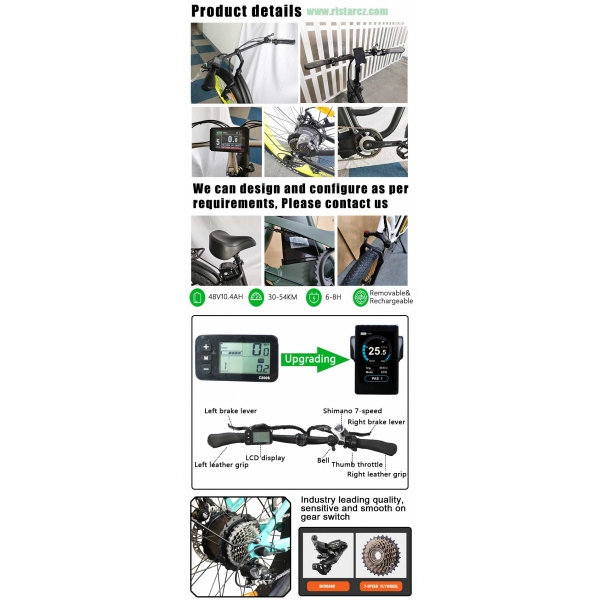

LCD c800s col orful display(with usb function)

3A special charger
mudguards/rear rack
suspension fork
hydraulic disc brake

Color selection


  •
  •
